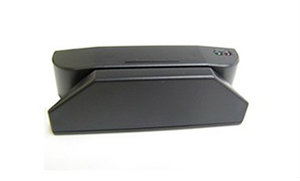

+6010-9883996CS-MT123-USB
| Previous ‹‹ | » Next |
- Access control
- Car parking system
- Reatil /Pos applocation
- Membership card applications
- Automated input device applications
- Avalibale in various interfaces: Keyboard wedge , RS-232 & USB
| Feature | CS-MT123-USB |
|---|---|
| Weight | 85g(approx.) |
| Interfaces | RS232, PS/2, USB |
| Dimensions | 90mm(L) x 27mm(W) x 28mm(H) |
| Operating Temperature | -20 to 90 degree Celsius |
| Storage Temperature | -30 to 90 degree Celsius |
| Humidity | Storage : 0% to 95% RH ; Operating : 20% to 90% RH |
| Power | Power Supply: +5V DV ±5%; Power Consumption: 40mA(max.) |
| Card Standard | ISO7811/7812 |
| Track Position | ISO 1 (IATA); ISO 2 (ABA); ISO 3 (MINTS) |
| Recording Density | ISO 1 (IATA) 210 BPI; ISO 2 (ABA) 75 BPI; ISO 3 (MINTS) 210 BPI |
| Recording Capacity | ISO 1 (IATA) 79 Characters (7bits); ISO 2 (ABA) 40 Characters(5bits); ISO 3 (MINTS) 107 Characters(5bits) |
| Card Thickness | Plastic 0.76 ± 0.08mm |
| Head Function | Read only 1.5mm |
| Operation Speed | 10 ~ 150cm/sec |
| Life of Head | 500,000 card passes (1 pass : one swipe) |
| Error Rate | 0.5% Lass Than (JSE Test card) |
| Operation Locus | Indoor use |
